Rotary positioners with elevation for controlled welding.
Who it is for Typical applications How to choose
Rotary Positioners
ARCHER
Rotary positioners with elevation for controlled welding.ARCHER machines are rotary positioners with elevation for controlled welding workflows and improved ergonomics.
03Available models
360°Technical product view
Model selectionChoose the configuration
Choose the configuration
that fits the task.
Compare working dimensions and capacity. High Torque variants remain clearly identified with a dedicated HT tag.
01ARCHER
Model

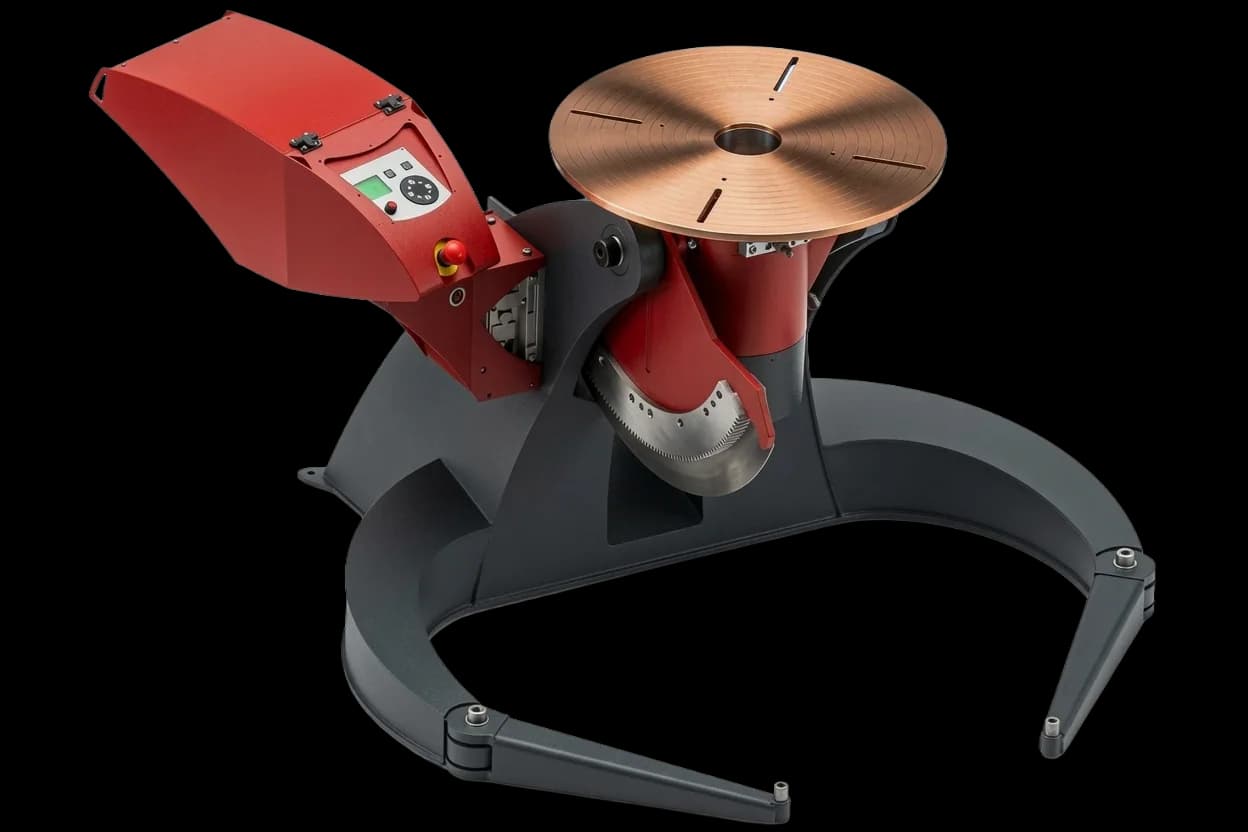

ARCHER 420
Heavy duty welding positioner of stand design with huge hollow spindle suitable for hard industrial works of maximal static loading up to 420 kg and motorized spindle tilting axis controlled from the machine front. The machine provides stable rotation by precise combination of stepper drive and planetary gearbox controlled by our digital control system R3.
Highlights
- Huge hollow spindle for supplying the inert gas under the weld or welding of long rod material. Tilting the spindle by buttons accessible from the machine front.
- Precise controlling with stepper motor and planetary gearbox provides stable rotation speed also with eccentric loading.
- Durable design with protection of sensitive parts and transmission of welding current by professional milled CuCrZr wiper.
Open product page
02ARCHER
Model

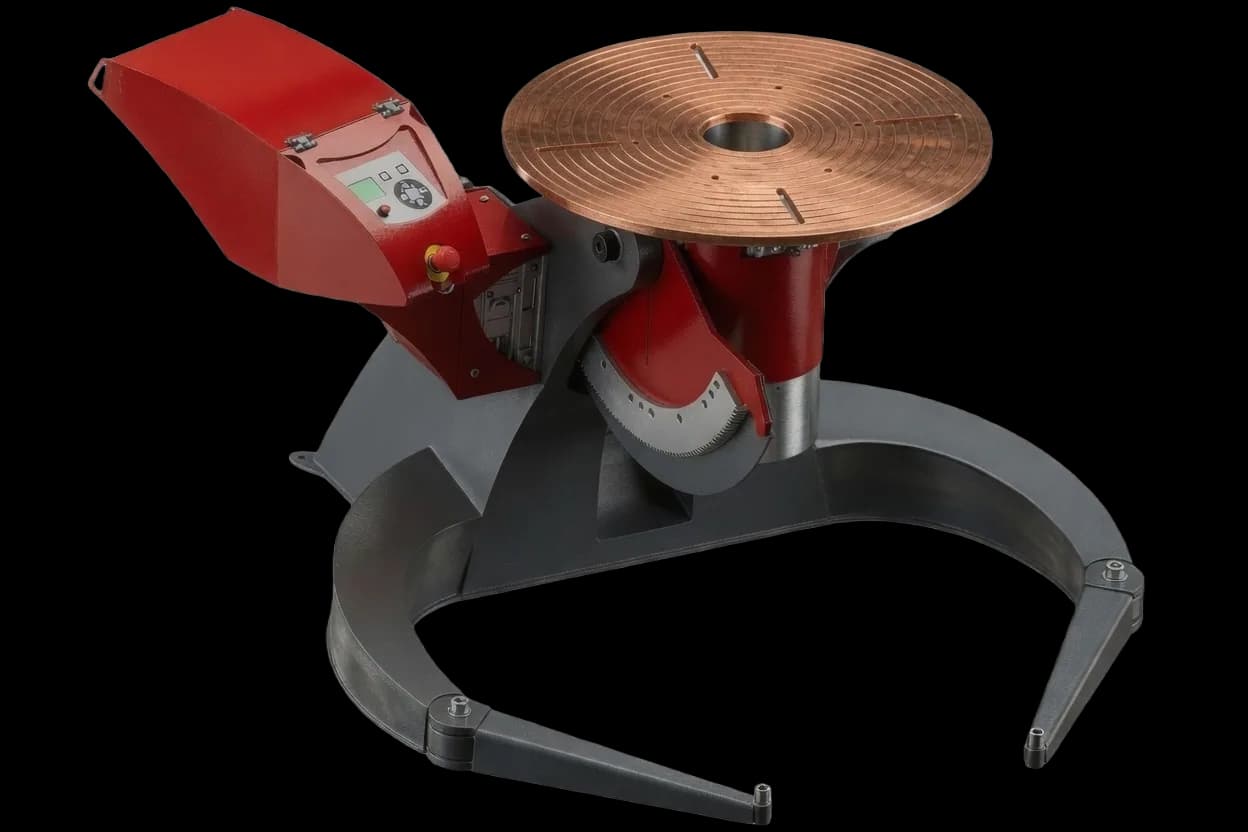

ARCHER 720
The middle version of heavy duty welding positioner ARCHER with with huge hollow spindle and motorized spindle tilting axis controlled from the machine front. The machine is intended for hard industrial works with maximal static loading up to 720 kg and provides stable rotation by stepper drive with our digital controlling.
Highlights
- Huge hollow spindle for supplying the inert gas under the weld or welding of long rod material. Tilting the spindle by buttons accessible from the machine front.
- Precise controlling with stepper motor and planetary gearbox provides stable rotation speed also with eccentric loading.
- Durable design with protection of sensitive parts and transmission of welding current by professional milled CuCrZr wiper.
Open product page
03ARCHERHTHigh Torque
Model
ARCHER 720 HT
High torque version of welding positioner ARCHER with huge hollow spindle and motorized spindle tilting axis which provides highly increased torque of spindle drive within this machines family. Perfect choice for even more demanding works and for welding programs regularly reach the upper limit of the machine load up to 720 kg or when the eccentric loading is expected. As well this HT version provides stable rotation by precise combination of stepper drive and planetary gearbox controlled by our
Highlights
- Huge hollow spindle for supplying the inert gas under the weld or welding of long rod material. Tilting the spindle by buttons accessible from the machine front.
- Precise controlling with stepper motor and planetary gearbox provides stable rotation speed also with eccentric loading.
- Durable design with protection of sensitive parts and transmission of welding current by professional milled CuCrZr wiper.
Open product page
Application context
ARCHER for rotary positioners and production integration.
This family is intended for production teams comparing published HST models against a defined workpiece, process and operating workflow.
Controlled workpiece rotation, ergonomic positioning and circumferential welding workflows.
Compare the available models, then confirm workpiece geometry, load conditions, movement, welding process and integration requirements.
Family FAQ
Questions before model selection.
Which ARCHER model fits my workpiece?
Selection depends on the complete workpiece, operating position, process and production environment. Share those inputs with HST before confirming a model.
Can this family be integrated into automation?
Integration is evaluated against the selected model, controls, interfaces and safety concept. The required scope is confirmed during technical consultation.
Configuration support
Need help selecting the right ARCHER model?
Describe your workpiece and production process. HST will help compare the relevant model, torque level and technical configuration.
