Back to machinesWelding Automats
HUNTER
Easy Installation
Model selection
Available models
01HUNTER
Model

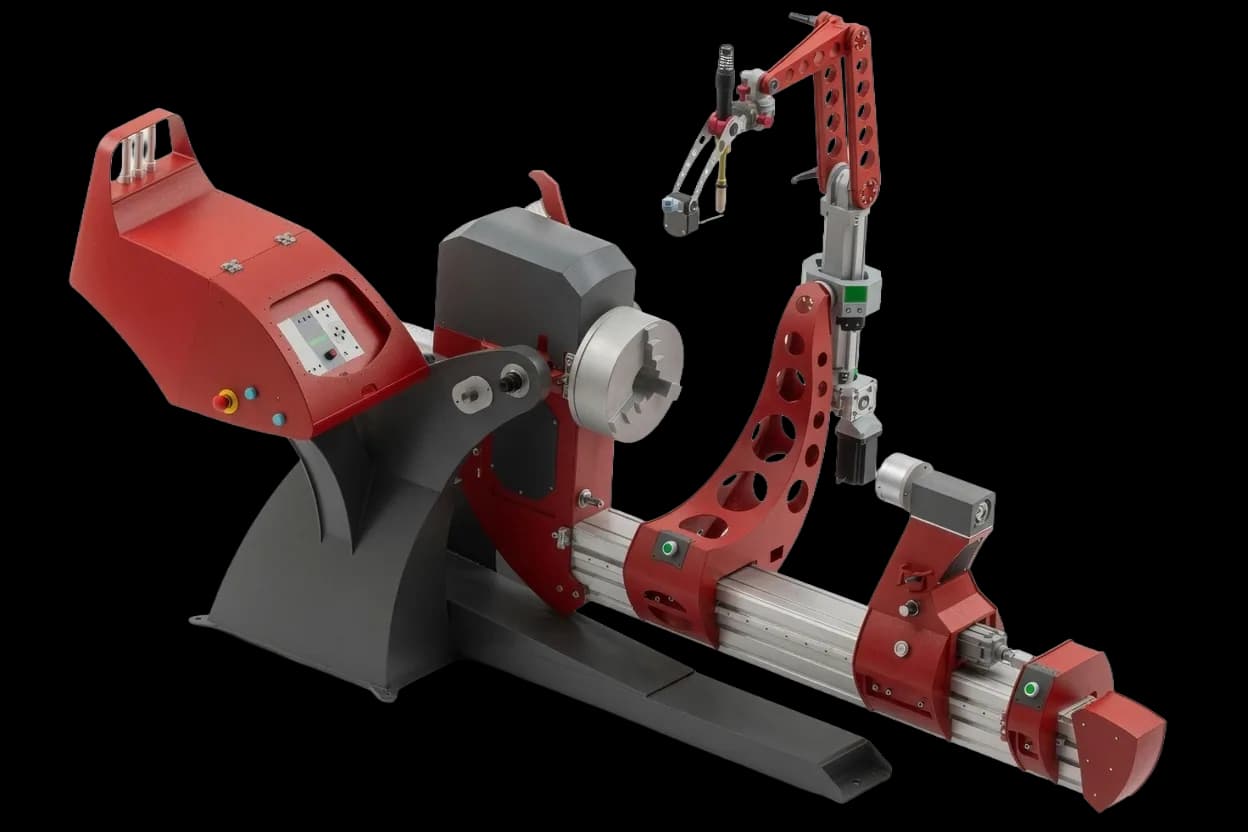

HUNTER XL
HUNTER XL is a versatile automatic rotary welding machine for circumferential welding, with additional capabilities for selected longitudinal welding and screw weld cladding. Its configurable working length ranges from 1450 to 3500 mm, while the fixed horizontal design increases static load capacity to 550 kg and supports advanced automation through the RCS 06 control system.
Highlights
- Configurable working length from 1450 to 3500 mm, defined by the distance between the main spindle and tailstock flanges, with extensions available in 100 mm increments.
- The fixed horizontal main beam eliminates the tilting mechanism, allowing a higher maximum static load of 550 kg while maintaining a 650 mm maximum turning diameter.
- One or two welding heads share a servo-driven, numerically controlled X axis for longitudinal movement and controlled torch oscillation (weaving), with optional numerically controlled Z-axis motion.
Price on request
Open product page
02HUNTER
Model

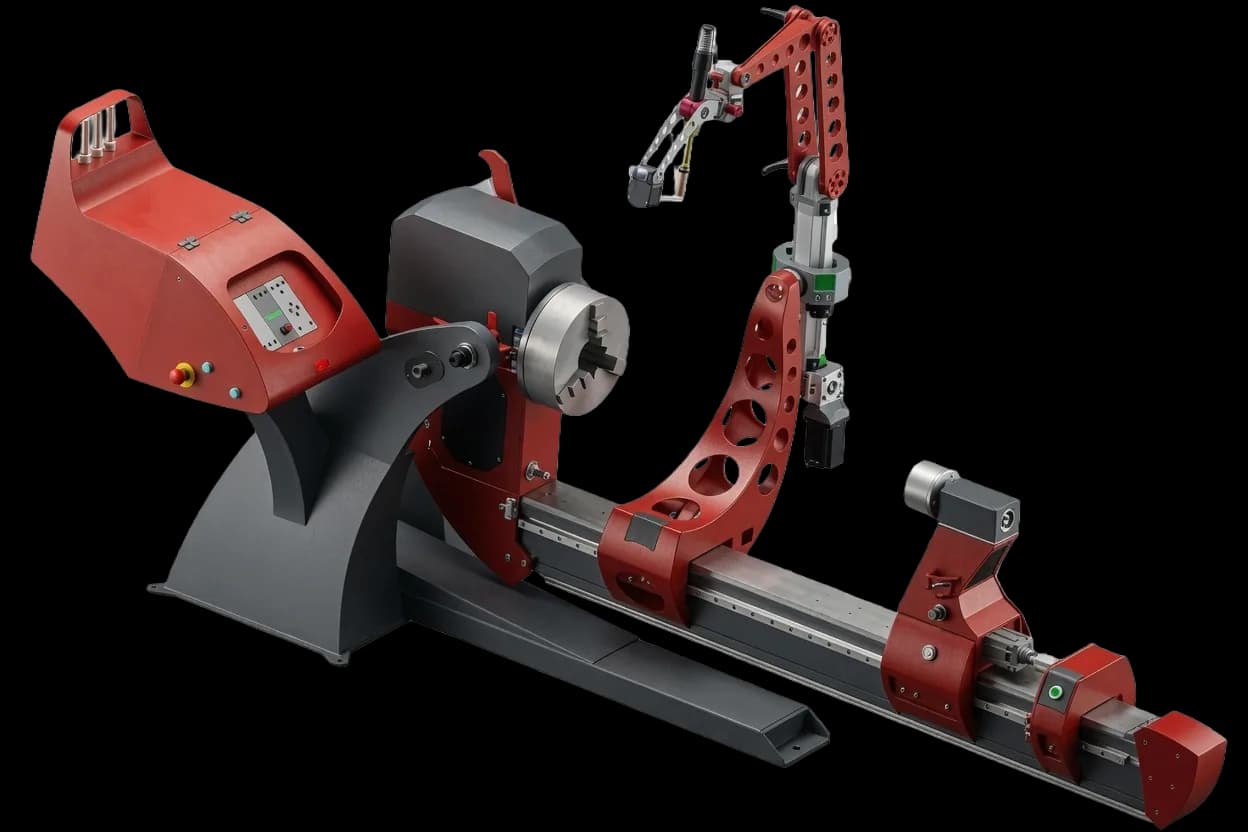

HUNTER EL
HUNTER EL is a versatile automatic rotary welding machine for circumferential welding, with additional capabilities for selected longitudinal welding and screw weld cladding. Its complete working assembly can tilt from 0–90°, and the machine supports one or two welding heads, automatic torch tracking, controlled preheating up to 600°C, and advanced RCS 06 automation.
Highlights
- The complete working assembly, including the main spindle, tailstock, and welding arm, can tilt from 0–90° manually or via a numerically controlled T axis to optimize the welding position.
- One or two welding heads share a servo-driven, numerically controlled X axis for longitudinal movement and controlled torch oscillation (weaving), with optional numerically controlled Z-axis motion.
- The 108 mm hollow main spindle and optional driven tailstock use synchronized backlash-free drives, supporting precise circumferential welding of fittings, pipes, rods, and other rotating workpieces.
Price on request
Open product page
