Rotary Positioners

POTTER

Compact rotary welding positioners for controlled workshop production.

POTTER rotary welding positioners are designed for smaller workpieces, repeatable circumferential welding and ergonomic workshop operation. The range supports manual welding, semi-automated welding setups and integration with suitable torch holders or welding source controls.

03Available models
360°Technical product view
POTTER machine family
Compact rotary welding positioners for controlled workshop production.
Model selection

Choose the configuration
that fits the task.

Compare working dimensions and capacity. High Torque variants remain clearly identified with a dedicated HT tag.

01POTTER

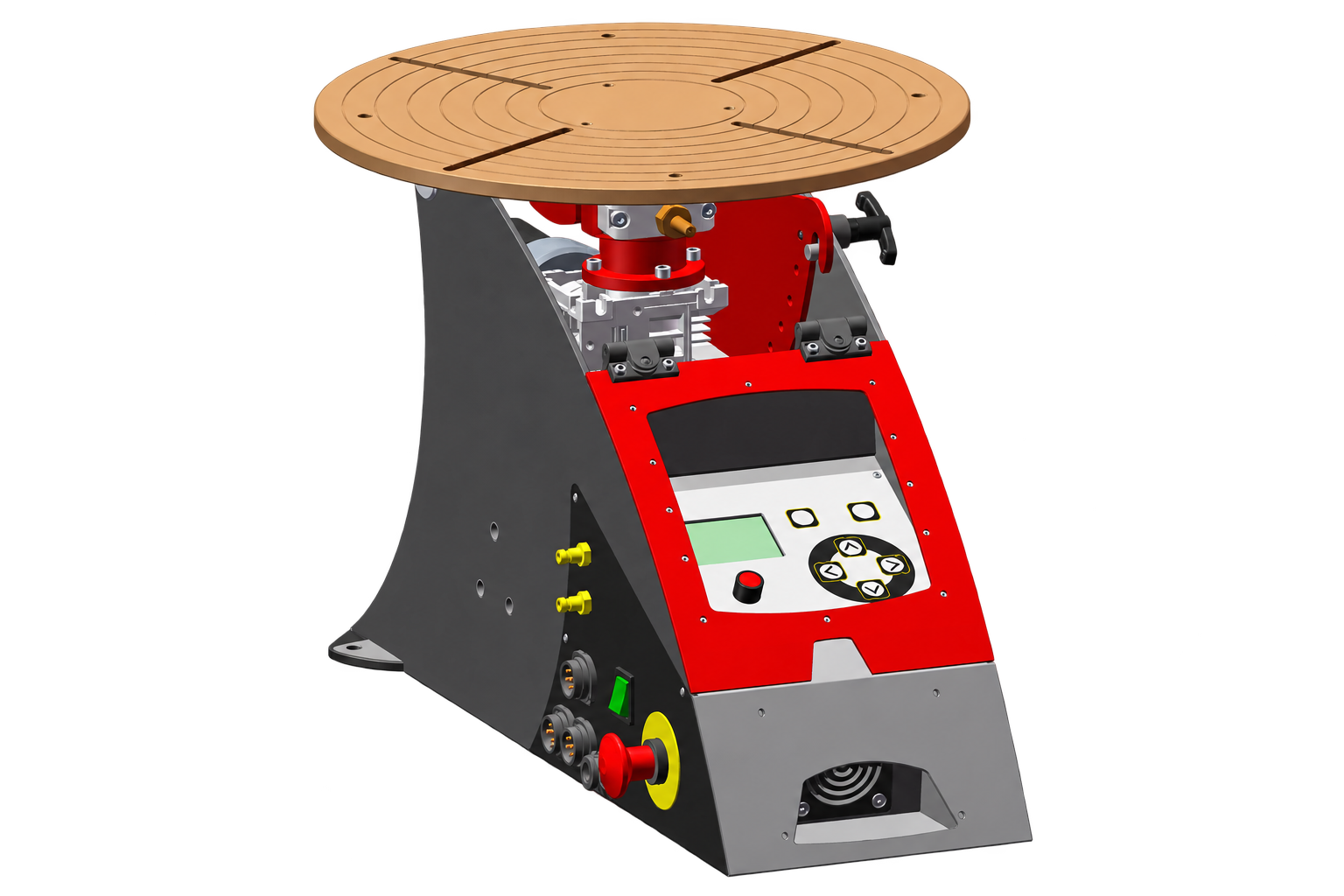

POTTER 50 preview
Model

POTTER 50

Compact welding positioner of table design with maximal static loading up to 50 kg for basic welding works of rather small products in a metal workshops or light industry. The machine provides stable rotation by stepper drive with our digital controlling and possibility of semi-automized welding accessories.

Highlights
  • Digital controlling with stepper motor provides stable rotation speed.
  • The control system R3 supports welding automation such as the setting of rotation angle, rotation delay, welding source switch OFF angle and other advanced functions.
  • Reliable design with protection of sensitive parts and transmission of welding current by professional milled CuCrZr wiper.
Open product page
02POTTER

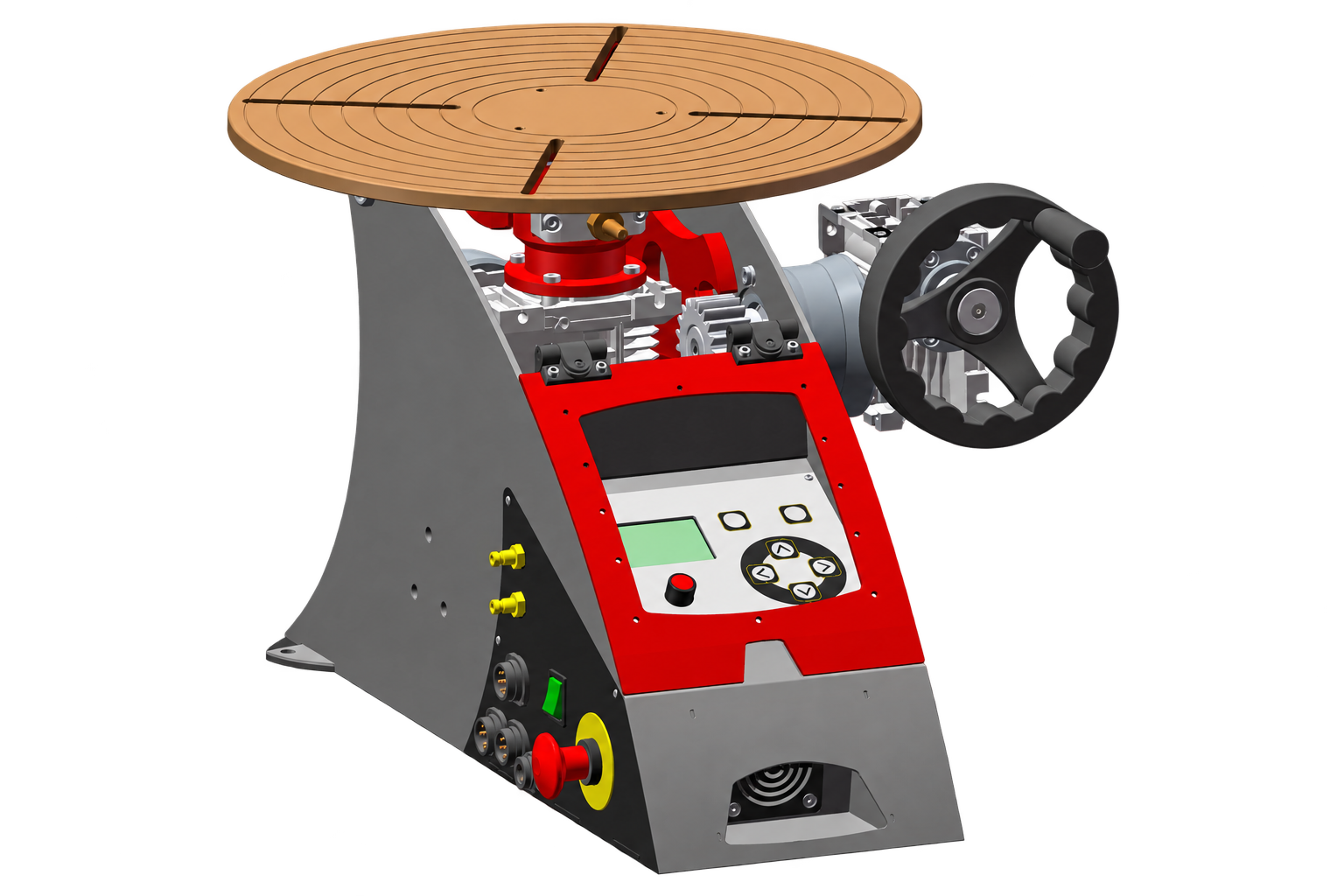

POTTER 100 preview
Model

POTTER 100

Compact welding positioner of table design with maximal static loading up to 100 kg with manually controlled spindle tilting by handle accessible from the machine front. The machine is designed for basic welding works of rather small products in a metal workshops or light industry and provides stable rotation by stepper drive with our digital controlling and possibility of semi-automized welding accessories.

Highlights
  • Digital controlling with stepper motor provides stable rotation speed. Tilting the spindle by handle accessible from the machine front.
  • The control system R3 supports welding automation such as the setting of rotation angle, rotation delay, welding source switch OFF angle and other advanced functions.
  • Reliable design with protection of sensitive parts and transmission of welding current by professional milled CuCrZr wiper.
Open product page
03POTTERHTHigh Torque
POTTER 100 HT preview
Model

POTTER 100 HT

High torque version of standard rotary welding positioner Potter 100 with manually controlled spindle tilting by handle accessible from the machine front as well suitable for workshops and light industry however where a production program is expected to regularly reach the upper limit of the machine load up to 100kg or when the eccentric loading is expected even in the case of lighter welded products.

Highlights
  • Digital controlling with stepper motor provides stable rotation speed. Tilting the spindle by handle accessible from the machine front.
  • The control system R3 supports welding automation such as the setting of rotation angle, rotation delay, welding source switch OFF angle and other advanced functions.
  • Reliable design with protection of sensitive parts and transmission of welding current by professional milled CuCrZr wiper.
Open product page
Application context

POTTER for rotary positioners and production integration.

This family is intended for production teams comparing published HST models against a defined workpiece, process and operating workflow.

Who it is for

Manufacturers evaluating industrial welding and positioning equipment for a repeatable, technically reviewed application.

Typical applications

Controlled workpiece rotation, ergonomic positioning and circumferential welding workflows.

How to choose

Compare the available models, then confirm workpiece geometry, load conditions, movement, welding process and integration requirements.

Family FAQ

Questions before model selection.

Which POTTER model fits my workpiece?

Selection depends on the complete workpiece, operating position, process and production environment. Share those inputs with HST before confirming a model.

Can this family be integrated into automation?

Integration is evaluated against the selected model, controls, interfaces and safety concept. The required scope is confirmed during technical consultation.

Configuration support

Need help selecting the right POTTER model?

Describe your workpiece and production process. HST will help compare the relevant model, torque level and technical configuration.

Discuss your application
Explore rotary positioners
