Engineering knowledge behind every HST CREATIVE machine.

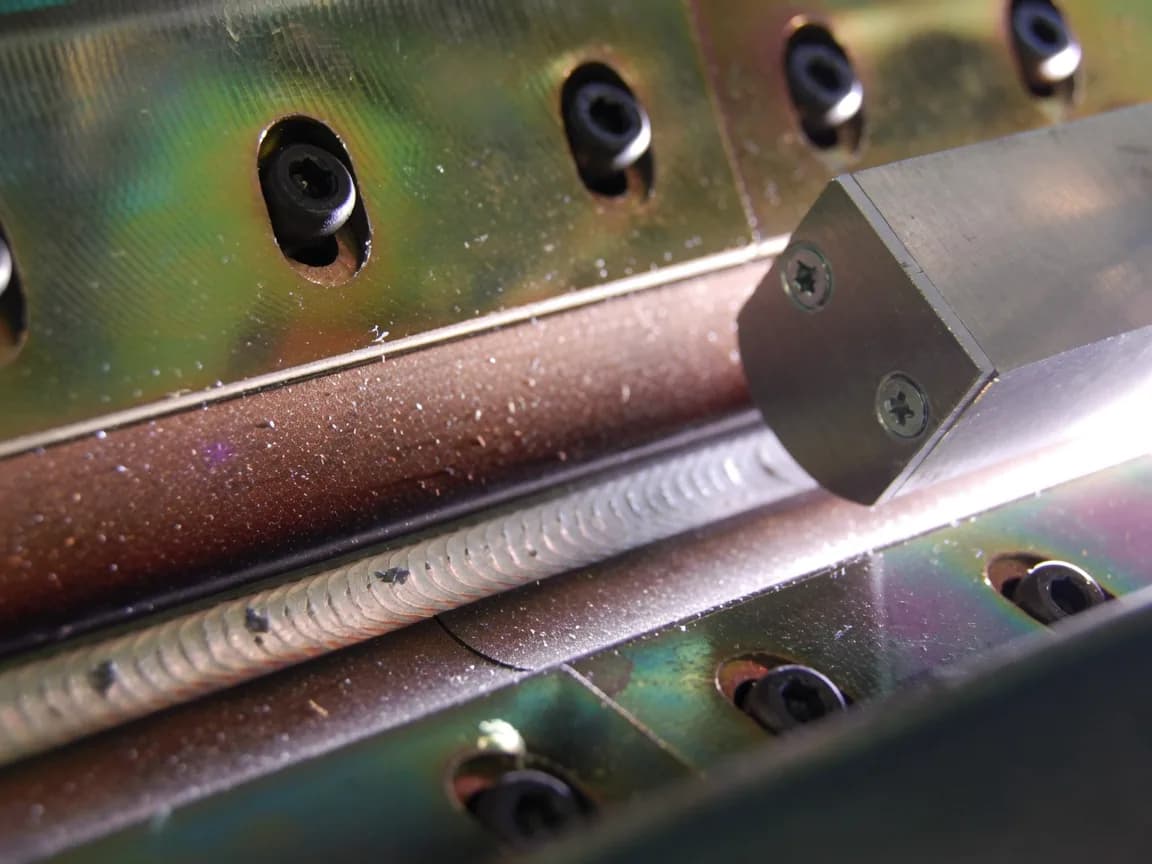

Standard technologies supported by HST CREATIVE

• Rotary welding performed on the plate with elevation
• Rotary and longitudinal welding with clamping in the centre axis, inner and outer elevation, possible without elevation
• Rotary and longitudinal welding on rotating rollers, inner and outer
• Screw and layer welding without elevation and screw and layer welding with elevation
• Longitudinal welding with both side fix clamping
• Plasma cutting of bevels in 2.5D
• Plasma cutting of plate materials in 2D
• Complex multitasking systems for fully automated welding process

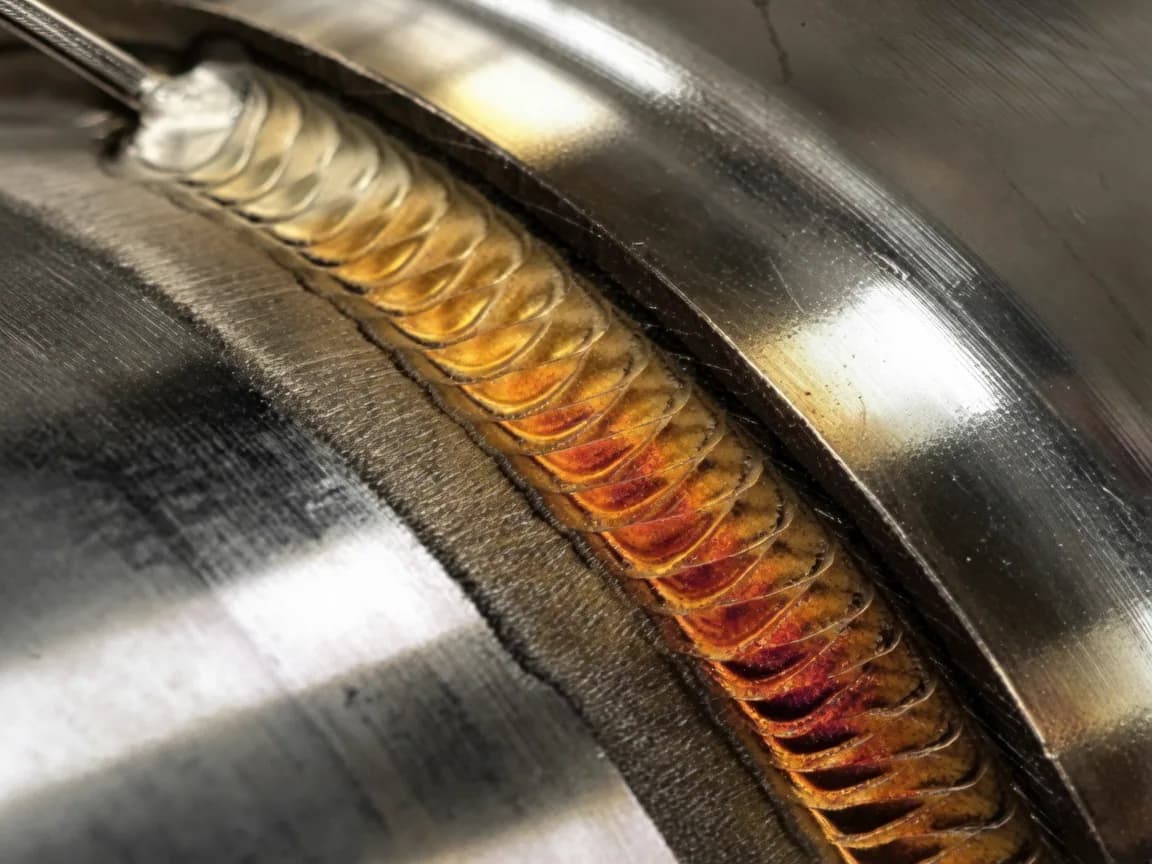

Welding methods optimized for HST CREATIVE devices

• MIG short circuit, method type 131
• MAG short circuit, open circuit and impulse arc, methods type 135, 136, 138
• SAW, methods type 121, 123
• TIG DC continuous arc and pulse arc, methods type 141, 142, 143, 145, 147
• TIG AC continuous arc and pulse arc, methods type 141, 142, 143
• Plasma Welding continuous arc and pulse arc, method type 15
• Plasma Welding Key Hole continuous arc, method type 15
• Laser

Welding methods according to ISO 4063.

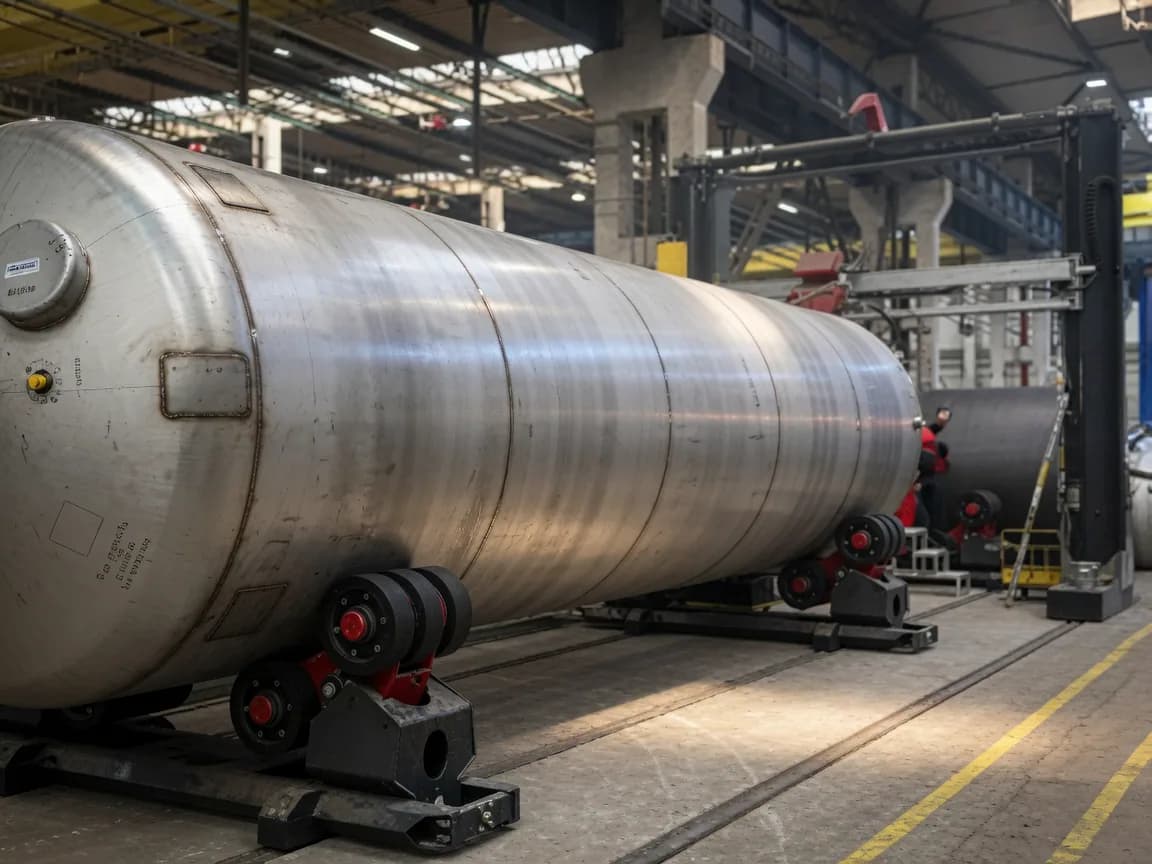

Concept and design of HST CREATIVE machines

• Rotary desk positioner with elevation
• Horizontal lathe welding automat
• Horizontal rotary lathe automat with elevation of the tailstock and control of torch position
• Universal rotary automat with elevation of the arm
• Universal rotary automat with elevation of the arm and control of torch position
• Roller rotary positioner with self-adjustable function and adjustable wheelbase
• Portal movable automat of GANTRY type with controlled position of the torch
• Roller rotary self-adjustable positioner
• Automat for longitudinal welding with precise clamping to copper underlay

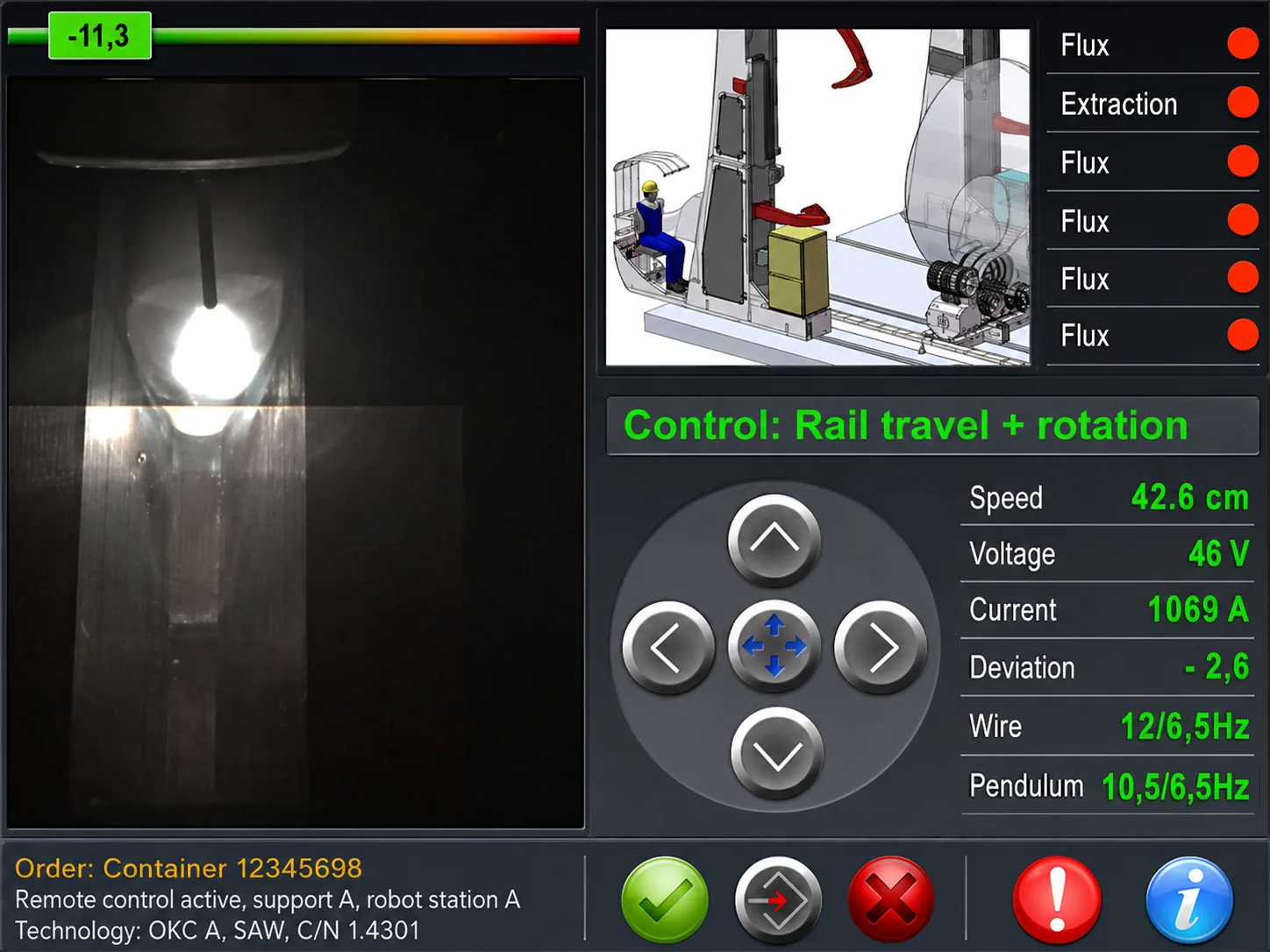

Control-system possibilities in the production process

• Numerically controlled axes: R-rotary, X-longitudinal, Z-height, T-tilting, E1, E2, E3 and other controlled axes
• Saving and naming of programs
• Program compilations for creating whole production processes
• Touch control by LCD system
• Remote controls programmable by the end user according to actual needs
• Possibility of program over-changing and UP/DOWN logic
• Digital camera enabling control of the welding system including direct view into the weld
• CanBus communication between HST CREATIVE automats and welding machine
• Control systems of the weld: Tactil, AVC
