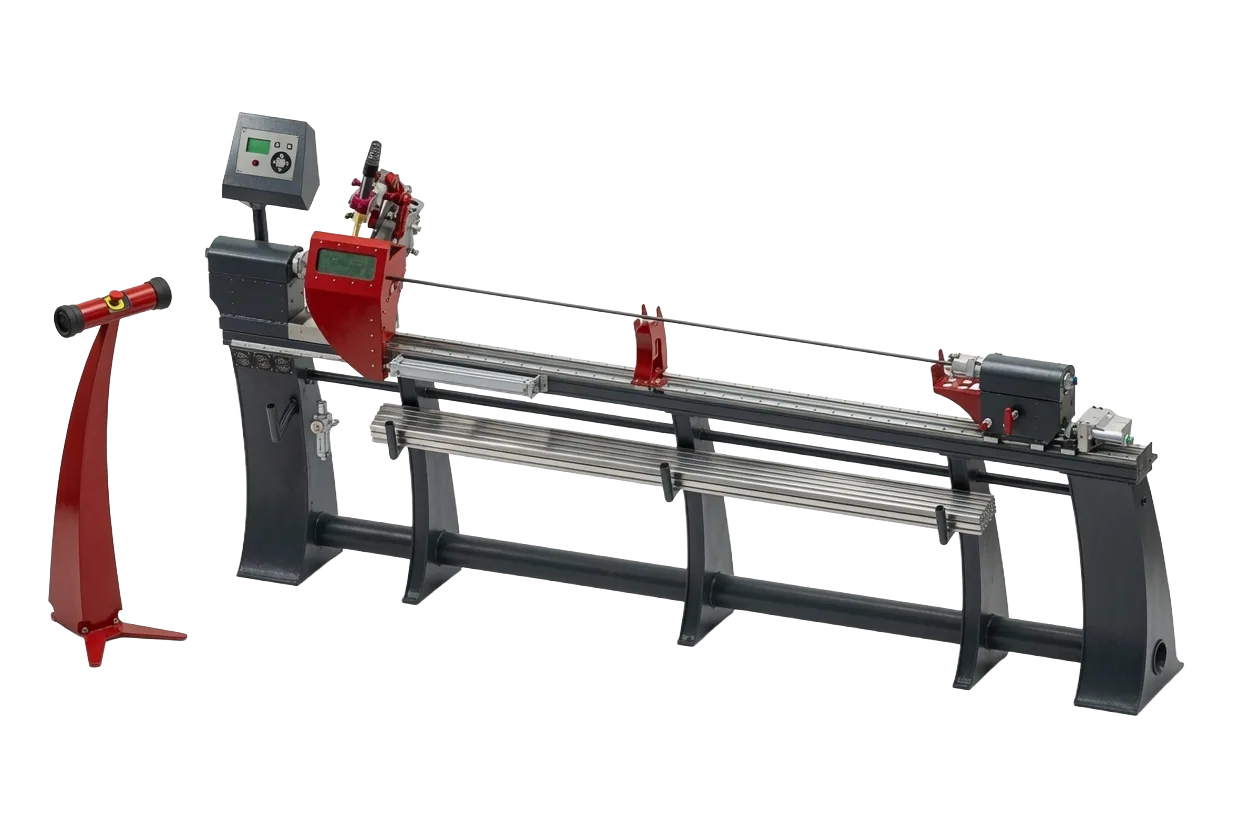

FITTER
Available models
FITTER R3
FITTER R3 is a precision automatic rotary welding machine for small and long rod or tubular workpieces, with a configurable working length from 500 to 7000 mm, a maximum turning diameter of 250 mm, and a maximum static load of 70 kg. It combines precise factory alignment, adaptable workpiece supports, optional automated clamping, and R3 control for circumferential welding.
- Configurable working length from 500 to 7000 mm, with longitudinal guideways carrying the movable tailstock, welding arm carriage, and intermediate roller support for long rod and tubular workpieces.
- Precision construction and factory alignment with a maximum deviation of 0.2 mm measured at the spindle flange edges support welding of small, precise components.
- The welding arm carriage can include an integrated roller steady rest, while a separate movable intermediate roller support provides additional stability for long workpieces.
FITTER R6
FITTER R6 is a precision automatic rotary welding machine for small and long rod or tubular workpieces, with a configurable working length from 500 to 7000 mm, a maximum turning diameter of 250 mm, and a maximum static load of 70 kg. It combines precise factory alignment and adaptable workpiece supports with advanced RCS 06 automation, including rotary acceleration and deceleration, welding source programming, power regulation, and integrated cold wire feeder control.
- RCS 06 provides advanced automation with rotary acceleration and deceleration, welding source programming, integrated CW 03 cold wire feeder control, program storage, and program sequences.
- Configurable working length from 500 to 7000 mm, with longitudinal guideways carrying the movable tailstock, welding arm carriage, and intermediate roller support for long rod and tubular workpieces.
- Precision construction and factory alignment with a maximum deviation of 0.2 mm measured at the spindle flange edges support welding of small, precise components.
