Large rotary positioners with elevation.
Who it is for Typical applications How to choose
Rotary Positioners
MILLER
Large rotary positioners with elevation.MILLER machines are large rotary welding positioners with elevation for heavy-duty production and precise manipulation.
03Available models
360°Technical product view
Model selectionChoose the configuration
Choose the configuration
that fits the task.
Compare working dimensions and capacity. High Torque variants remain clearly identified with a dedicated HT tag.
01MILLER
Model
MILLER 1850
**MILLER 1850** is heavy rotary welding positioner and manipulator of stand design with 1000 mm height of working plate and maximum working load of 1850 kg. Purpose of this machine circumferential welding and product manipulation in hard and challenging conditions in industry of all sectors. It goes about flawlessly and high developed system of the highest construction level getting the possibilities of rotary positioners above their conceptual possibilities. This rotary positioner is characterized by strong construction, perfect design and sufficiently dimensioned components. Massive sandwich steel construction houses spindle and driving mechanism. The spindle has a flange giving the possibility of mounting the standard working plate with radial grooves, or recomended universal chuck. **Control system R3** is integrated into the positioner chassis and protected by the steel cover with polycarbonate glass cover against the splash of welded metal. This rotary positioner is characterized by strong construction, perfect design and sufficiently dimensioned components. High-quality stepoper drive guarantees perfect smoothness and constant rotate speed. The spindle tilting lever mechanism is powered by asynchronous motor in combination with massive lifting gearbox with motion screw, the mechanism allows change the tilt in the range from 0° - 90° even under load to ensure optimal welding or mounting position. The work with positioner can be easier while using the **foot controller for speed proportional regulation** which allows to correct the speed of spindle rotation during welding. Hand controller is another alternative for the remote control of the positioner. In addition, to control the speed of rotation both, the foot control and hand controller, may include a selector for the changing of rotation direction. This rotary positioner is equipped with **digital control system R3 specially designed by HST CREATIVE for circumferential welding** and successful automation of this process, the positioner also has controlled output for switching ON the welding source arc.
Open product page
02MILLER
Model

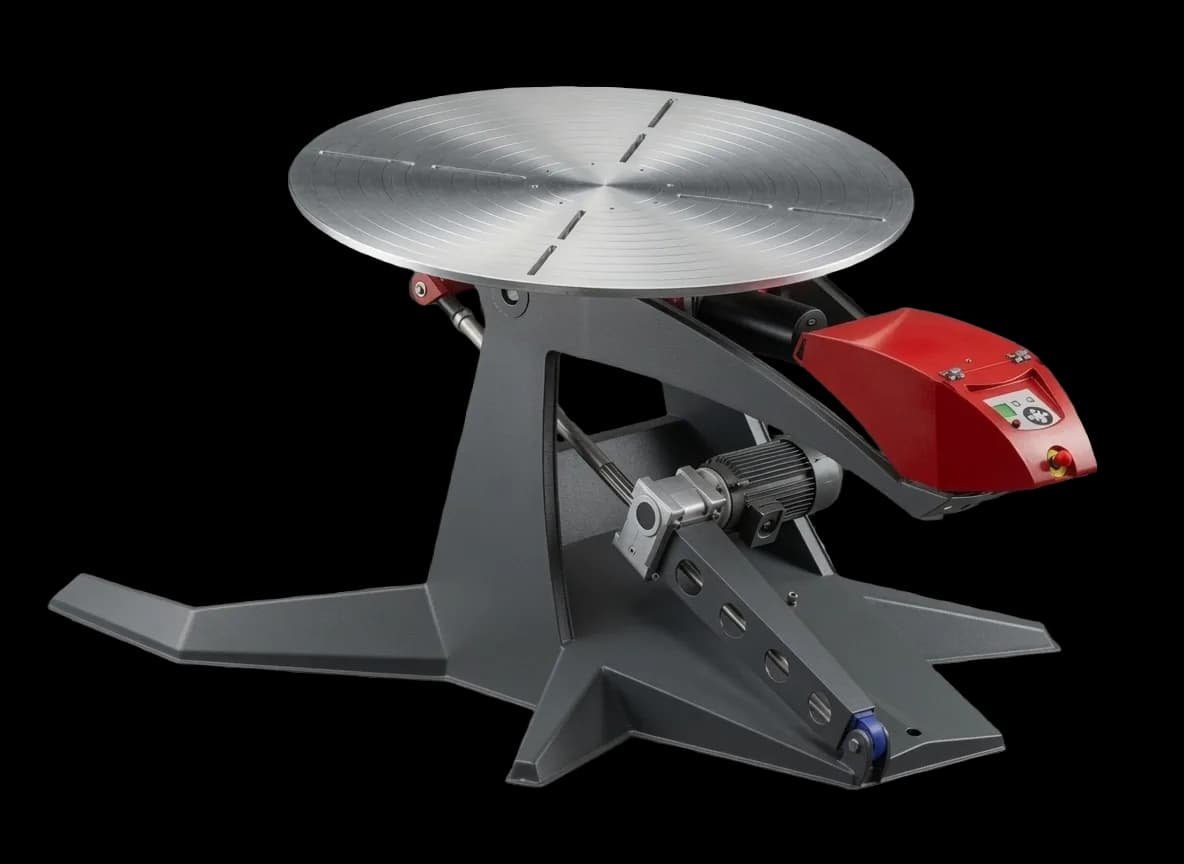

MILLER 3850
**MILLER 3850** is heavy rotary welding positioner and manipulator of stand design with 1000 mm height of working plate and maximum working load of 3850 kg. Purpose of this machine circumferential welding and product manipulation in hard and challenging conditions in industry of all sectors. It goes about flawlessly and high developed system of the highest construction level getting the possibilities of rotary positioners above their conceptual possibilities. This rotary positioner is characterized by strong construction, perfect design and sufficiently dimensioned components. Massive sandwich steel construction houses spindle and driving mechanism. The spindle has a flange giving the possibility of mounting the standard working plate with radial grooves, or recomended universal chuck. **Control system R3** is integrated into the positioner chassis and protected by the steel cover with polycarbonate glass cover against the splash of welded metal. This rotary positioner is characterized by strong construction, perfect design and sufficiently dimensioned components. High-quality stepoper drive guarantees perfect smoothness and constant rotate speed. The spindle tilting lever mechanism is powered by asynchronous motor in combination with massive lifting gearbox with motion screw, the mechanism allows change the tilt in the range from 0° - 90° even under load to ensure optimal welding or mounting position. The work with positioner can be easier while using the **foot controller for speed proportional regulation** which allows to correct the speed of spindle rotation during welding. Hand controller is another alternative for the remote control of the positioner. In addition, to control the speed of rotation both, the foot control and hand controller, may include a selector for the changing of rotation direction. This rotary positioner is equipped with **digital control system R3 specially designed by HST CREATIVE for circumferential welding** and successful automation of this process, the positioner also has controlled output for switching ON the welding source arc.
Open product page
03MILLERHTHigh Torque
Model
MILLER 3850 HT
**MILLER 3850 HT** is advanced and the strongest version of our heavy rotary welding positioner and manipulator from MILLER family. even this version provides stand design with 1000 mm height of working plate and maximum working load of 3850 kg. Purpose of this machine is as well circumferential welding and product manipulation in hard and challenging conditions in industry of all sectors. This special HT version provides highly increased torque of spindle drive for production program regularly reach the upper limit of the machine load or when the eccentric loading by loaded product is expected. It goes about flawlessly and high developed system of the highest construction level getting the possibilities of rotary positioners above their conceptual possibilities. This rotary positioner is characterized by strong construction, perfect design and sufficiently dimensioned components. Massive sandwich steel construction houses spindle and driving mechanism. The spindle has a flange giving the possibility of mounting the standard working plate with radial grooves, or recomended universal chuck. **Control system R3** is integrated into the positioner chassis and protected by the steel cover with polycarbonate glass cover against the splash of welded metal. This rotary positioner is characterized by strong construction, perfect design and sufficiently dimensioned components. High-quality stepoper drive guarantees perfect smoothness and constant rotate speed. The spindle tilting lever mechanism is powered by asynchronous motor in combination with massive lifting gearbox with motion screw, the mechanism allows change the tilt in the range from 0° - 90° even under load to ensure optimal welding or mounting position. The work with positioner can be easier while using the **foot controller for speed proportional regulation** which allows to correct the speed of spindle rotation during welding. Hand controller is another alternative for the remote control of the positioner. In addition, to control the speed of rotation both, the foot control and hand controller, may include a selector for the changing of rotation direction. This rotary positioner is equipped with **digital control system R3 specially designed by HST CREATIVE for circumferential welding** and successful automation of this process, the positioner also has controlled output for switching ON the welding source arc.
Open product page
Application context
MILLER for rotary positioners and production integration.
This family is intended for production teams comparing published HST models against a defined workpiece, process and operating workflow.
Controlled workpiece rotation, ergonomic positioning and circumferential welding workflows.
Compare the available models, then confirm workpiece geometry, load conditions, movement, welding process and integration requirements.
Family FAQ
Questions before model selection.
Which MILLER model fits my workpiece?
Selection depends on the complete workpiece, operating position, process and production environment. Share those inputs with HST before confirming a model.
Can this family be integrated into automation?
Integration is evaluated against the selected model, controls, interfaces and safety concept. The required scope is confirmed during technical consultation.
Configuration support
Need help selecting the right MILLER model?
Describe your workpiece and production process. HST will help compare the relevant model, torque level and technical configuration.
